Marsh Stencil Cutter
Model R, R5, S, H, & Q Name Plate Down
>>

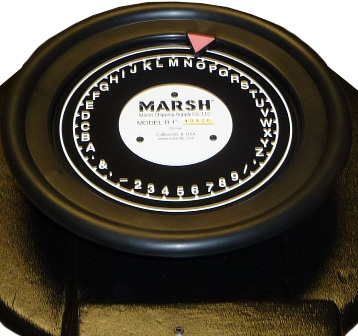

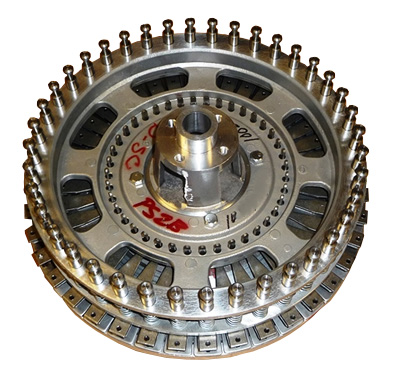

Remove the Hand Wheel and Top Cover and find the punch carrier wheel:
Main Page, Name Plate Down, Top Cover, Feed Wheels, Underside
RP02-R | Hood (1") |
RP02-SHQ | Hood (1/4", 1/2", 3/4") |
RP03-R | Carrier, Die (1”) |
RP03-SHQ | Carrier, Die (1/4”, 1/2”, 3/4”) |
RP04A | Screw,cap head hex |
RP04-R | Carrier punch (1") |
RP04-SHQ | Carrier, punch (1/4", 1/2", 3/4") |
RP05X-R | Holder, punch and shank assy (1") |
RP05X-SHQ | Holder, punch and shank assy (1/4", 1/2", 3/4") |
RP06B-R | Screw, punch (1") |
RP06B-SHQ | Screw, punch (1/4", 1/2", 3/4") |
RP06C-R | Screw, die (1") |
RP06C-SHQ | Screw, die (1/4", 1/2", 3/4") |
RP07X | Wheel assy, hand |

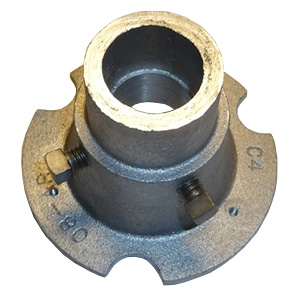

RP08 | Holder, dial |
RP08B | Screw, set square head |
RP1503C | Washer |
RP26S-R | Spring, punch (1") |
RP26S-SHQ | Spring, punch (1/4", 1/2", 3/4") |
RP26W-R | Washer, rubber (1") |
RP26W-SHQ | Washer, rubber (1/4", 1/2", 3/4") |
RP27 | Retainer, spring |
RP32 | Dial blank, manual |
RP32A | Screw, phillips truss head |
RP78-R | Washer, felt (1") |
RP78-SHQ | Washer, felt (1/4", 1/2", 3/4") |
RP79 | Washer, felt |
RPH5DP | Punch and die – set of 40 1/2" characters |
RPQ5DP | Punch and die – set of 40 1/4" characters |
RPR5DP | Punch and die – set of 40 1" characters |
RPS5DP | Punch and die – set of 40 3/4" characters |

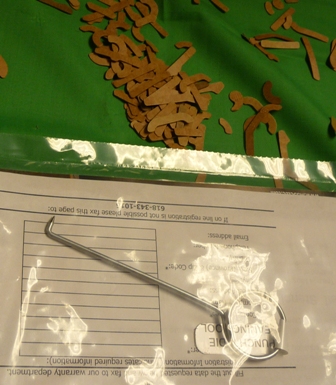

Cleaning Hook Part # 180P-RPCHOOK
